PH4


PH4

Model

PH4

Working Weight

1,064 lbs

483 kg

Recommended Carrier Weight

6 - 9 US tons

5.4 - 8.2 metric tons

The PH4 hydraulic hammer is compatible with skid steers, backhoes and/or mini excavators in the 6-9 ton range.  Visit the Attachment Wizard to see which hydraulic breakers are compatible with your carrier!





Hydraulic Hammer Service Videos  Hydraulic Hammer Operation Videos  Hydraulic Hammer Photo Galleries  Hydraulic Hammer Publications


Visit and subscribe to NPK's YouTube channel for hydraulic hammer operation and service videos and videos of hydraulic breakers in action!

Visit NPK's photo website for searchable hydraulic hammer photo galleries!

Visit the Hydraulic Hammer Publications page for sales brochures, operators manuals, and service bulletins.  If you require a service manual or would like a hard copy of any other manual, please contact the Sales Department at 800-225-4379 or email to sales@npkce.com.



Videos de servicio


Visita y suscríbete al canal de YouTube de NPK para videos de instrucciones de servicio para martillos hidráulicos.


NPK AUTOLUBE SYSTEMS are designed to automatically provide a supply of grease to the hammer tool bushing - increasing tool bushing life by reducing tool bushing wear.  NPK offers both carrier mounted and hammer mounted options.  Due to its compact design, the hammer mounted autolube system can be installed directly onto the hammer. This design ensures that the autolube system is always with the hammer, great when sharing a hammer between several carriers.



Autolube Publications


Visit the Autolube Publications page for
sales brochures and operators manuals.



Find a Dealer

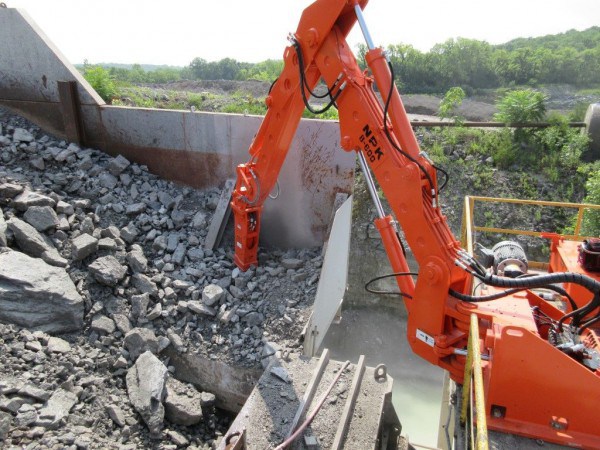

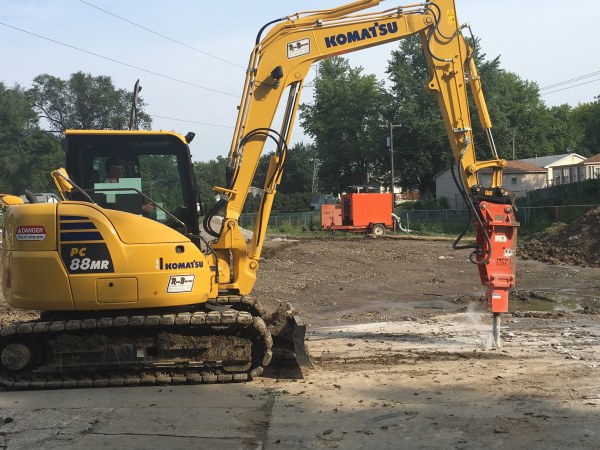

Additional Images:


Impact Energy Class 1,300 ft lbs
Impact Frequency 400 - 1,000 bpm
Oil Flow 13 - 32 gpm 50 - 120 lpm
Operating Pressure 2,465 psi 170 bar
Tool Diameter 3.4 in 86 mm
Tool Working Length 18.5 in 470 mm

Description
