K4JR


K4JR

Model

K4JR

Working weight

1,000 lbs

454 kg

Recommended Carrier Weight Range (3rd member)

5.5 - 10 US tons

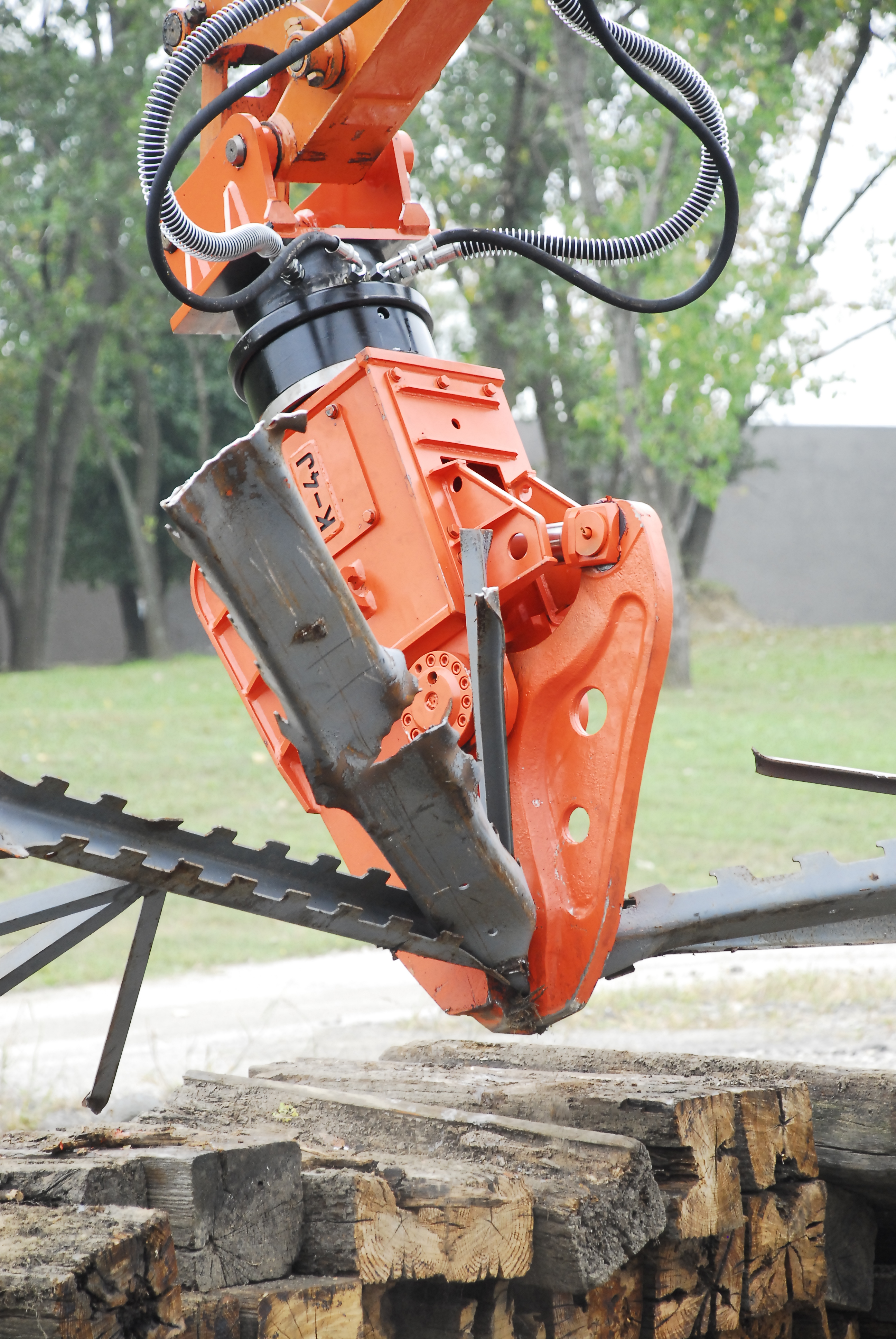

K4JR demolition shears are suited for skid steers, backhoes, and mini excavators within the recommended carrier weight ranges listed in the specifications below.  Or visit the Attachment Wizard to see which NPK demolition shear (or other attachment) is best suited for your carrier!





Demolition Shear Operation Videos  Demolition Shear Photo Galleries  Demolition Shear Publications


Visit and subscribe to NPK's YouTube channel for videos of demolition shears in action!

Visit NPK's photo website for searchable demolition shear photo galleries!

Visit the Demolition Shear Publications page for sales brochures and instruction manuals.



Visit each demolition shear model page below for additional images and specifications. If you would like a hard copy of the instruction manual, please contact the Sales department at 800-225-4379 or by email at sales@npkce.com.



Find a Dealer

Additional Images:


Recommended Carrier Weight Range (2nd member) 3.5 - 6 US tons
Recommended Carrier Weight range (Skidsteer) 3.25 US tons
Maximum Jaw Opening 15.7 in 400 mm
Maximum Jaw Depth 10.2 in 260 mm
Maximum Reach 50 in 1,270 mm
Oil Flow 8 - 13 gpm 30 - 50 lpm
Operating Pressure 2,600 psi 180 bar
Maximum Cut/Pierce Force 90 US tons
Cutting Capacity Round Bar (Mild Steel, Single Pass) 1.75 in 44.5 mm
Cutting Capacity Flat Plate (Mild Steel, Single Pass) .65 in 16 mm
