PH1


PH1

Model

PH1

Working Weight

423 lbs

192 kg

Recommended Carrier Weight

2 - 3.5 US tons

1.8 - 3.2 metric tons

Find a Dealer

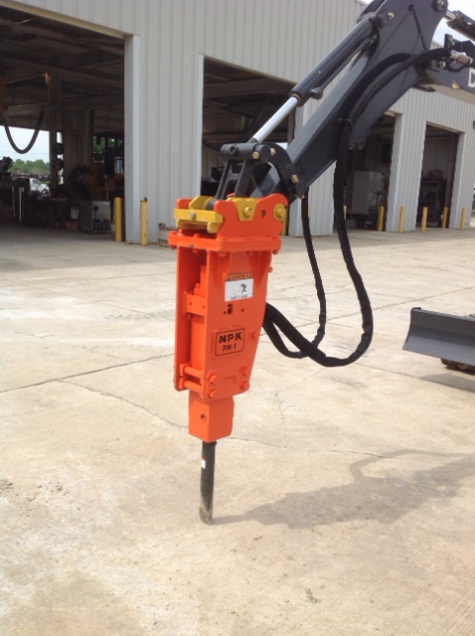

Additional Images:


Impact Energy Class 350 ft lbs
Impact Frequency 550 - 1,100 bpm
Oil Flow 7 - 15 gpm 25 - 55 lpm
Operating Pressure 2,465 psi 170 bar
Tool Diameter 2.2 in 57 mm
Tool Working Length 14.1 in 359 mm

Description

Hammer pre-delivery inspection    Hammer inspection
Prior to all hammer deliveries, ensure the following items have been verified for each unit.
Identify the serial number of the hammer Hydraulic hammer serial number location
When ordering parts or performing repairs, always use the serial number to find information regarding your unit. The serial number is located on the hammer.
Safety decal & operation safety manual listing Safety listing
It is imperative that the safety decals, manual, and operator’s cards are kept and maintained in the cab of any carrier that is utilizing an NPK attachment.
Gas charge specifications H, E, GH, and PH series hammers Specs & instructions
Correct pressures & method
Hammer storage Storage of hydraulic hammers
Improper long term storage of hydraulic hammers has resulted in costly repairs from water corrosion damage.
Chisel tool resharpening Instructions & dimensions
Worn chisel tools can be resharpened by machining.
Correct grease for hydraulic hammers Approved brands & methods
Proper hammer maintenance depends on the regular greasing of the tool (chisel) with the correct grease.
