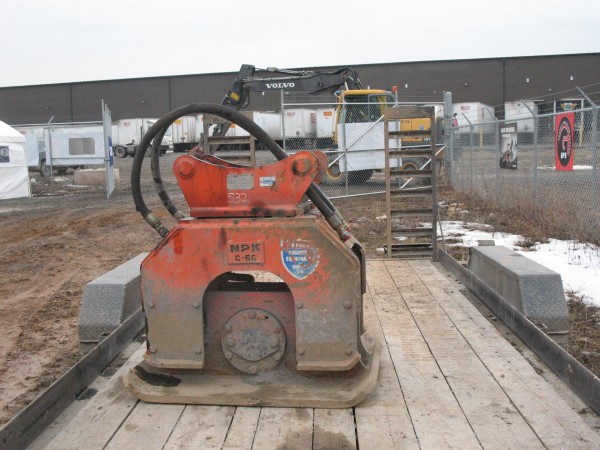

C6C


C6C

Model

C6C

Recommended Carrier Weight

8 - 21 US tons

7.2 - 19 metric tons

Working Weight

fixed: 1,650 lbs swivel: 1,715 lbs

fixed: 748 kg swivel: 778 kg

Find a Dealer

Additional Images:


Impulse Force 16,000 ft lbs
Cycles per Minute 2,200 rpm
Oil Flow 33 gpm 125 lpm
Operating Pressure 1,800 - 2,300 psi 124 - 159 bar
Relief Pressure setting 2,600 psi 179 bar
Swivel Feature optional
Baseplate Dimensions 29 x 40 in 735 - 1,015 mm
Compaction Area 8.1 sq ft 0.75 sq m
Height 39 in 990 mm
Width 29 in 735 mm

Description

Description

Compactor pre-delivery inspection Compactor inspection
Priory to all deliveries, ensure the following items have been verified for each unit.
Check / set compactor manifold relief  Relief setting instructions
If the compactor relief cartridge has been replaced, disturbed, or is suspected to be out of adjustment, the following procedure can be used to check and set the relief.
