Model

C4C

Recommended Carrier Weight

5 - 12.5 US tons

4.5 - 11.3 metric tons

Working Weight

fixed: 910 lbs swivel: 960 lbs

fixed: 413 kg swivel: 435 kg

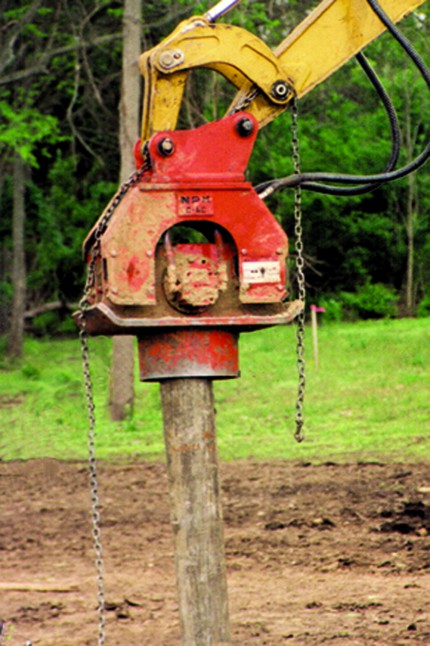

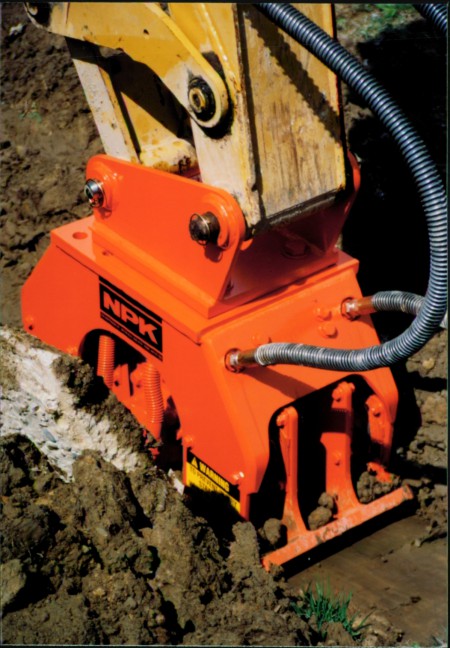

The C4C plate compactor is compatible with backhoes, mini excavators and/or full size excavators in the 5-12.5 ton range.  Visit the Attachment Wizard to see which NPK plate compactor / driver is best suited for your carrier!





Compactor / Driver Operation Videos  Compactor / Driver Photo Galleries  Compactor / Driver Publications


Visit and subscribe to NPK's YouTube channel for videos of plate compactors / drivers in action!

Visit NPK's photo website for searchable plate compactor / driver photo galleries!

Visit the Compactor / Driver Publications page for sales brochures, operator manuals and service bulletins.



If you require a service manual, please contact the Sales department at 800-225-4379 or by email at sales@npkce.com.



Find a Dealer


Impulse Force 7,800 ft lbs
Cycles per Minute 2,100 rpm
Oil Flow 22 gpm 83 lpm
Operating Pressure 1,700 - 2,200 psi 117 - 152 bar
Relief Pressure Setting 2,600 psi 179 bar
Swivel Feature optional
Baseplate Dimensions 23 x 34 in 585 - 865 mm
Compaction Area 5.4 sq ft 0.5 sq m
Height 30 in 760 mm
Width 23 in 585 mm
Chuck Opening N/A
Chuck Oil Flow N/A
Chuck Pressure N/A
