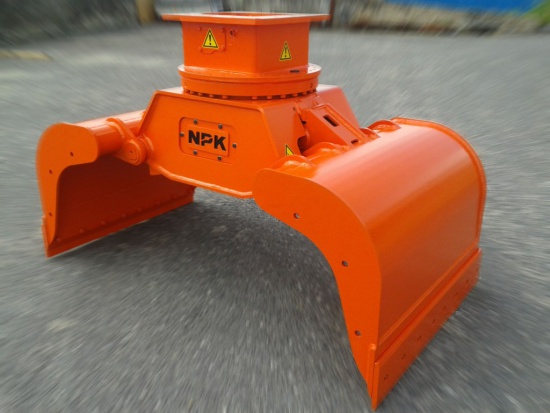

DG-20/20A | Demolition & Sorting Grapple | Selector Grapple


DG-20A

Model

DG-20A

Recommended Carrier Weight

31,000 - 44,000 lbs

14 - 20 metric tons

Working Weight

2,755 lbs

1,250 kg

The DG-20/20A demolition & sorting grab is compatible with excavators in the 14-20 metric ton range.  Visit the Attachment Wizard to see which NPK grapples are compatible with your carrier!








Visit and subscribe to NPK's YouTube channel for videos of demolition grapples in action

Visit NPK's photo website for searchable selector grab photo galleries!

Visit the Demolition & Sorting Grabs Publications page for sales brochures.



For more information, contact the Sales department at 440-232-7900 or by email at sales@npkce.com.



Find a Dealer

Additional Images:


Capacity 0.65 cu yd 500 L
Operating Pressure 3,625 - 5,075 psi 250 - 350 bar
Oil Flow 16 - 26 gpm 60 - 100 lpm
Closing Force 11,690 lbf 52 kN
Operating Pressure – Rotation 1,450 - 2,030 psi 100 - 140 bar
Oil Flow – Rotation 8 - 13 gpm 30 - 50 lpm
Max Opening 80.7 in 2,050 mm
Width of Arm 37 in 950 mm
Height 51.2 in 1,300 mm
Double Motor Rotation standard
Single Motor Rotation optional
