Model

PH3

Working Weight

825 lbs

374 kg

Recommended Carrier Weight

4 - 8 US tons

3.6 - 7.3 metric tons

The PH3 hydraulic hammer is compatible with skid steers, backhoes and/or mini excavators in the 4-8 ton range.  Visit the Attachment Wizard to see which hydraulic breakers are compatible with your carrier!





Hydraulic Hammer Service Videos  Hydraulic Hammer Operation Videos  Hydraulic Hammer Photo Galleries  Hydraulic Hammer Publications


Visit and subscribe to NPK's YouTube channel for hydraulic hammer operation and service videos and videos of hydraulic breakers in action!

Visit NPK's photo website for searchable hydraulic hammer photo galleries!

Visit the Hydraulic Hammer Publications page for sales brochures, operators manuals, and service bulletins.  If you require a service manual or would like a hard copy of any other manual, please contact the Sales Department at 800-225-4379 or email to sales@npkce.com.



Videos de servicio


Visita y suscríbete al canal de YouTube de NPK para videos de instrucciones de servicio para martillos hidráulicos.


NPK AUTOLUBE SYSTEMS are designed to automatically provide a supply of grease to the hammer tool bushing - increasing tool bushing life by reducing tool bushing wear.  NPK offers both carrier mounted and hammer mounted options.  Due to its compact design, the hammer mounted autolube system can be installed directly onto the hammer. This design ensures that the autolube system is always with the hammer, great when sharing a hammer between several carriers.



Autolube Publications


Visit the Autolube Publications page for
sales brochures and operators manuals.



Find a Dealer

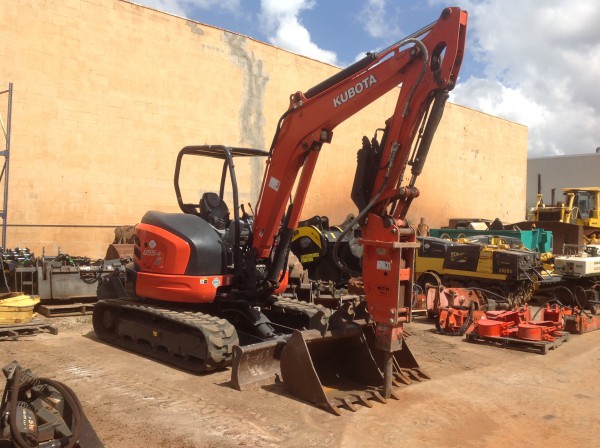

Additional Images:


Impact Energy Class 750 ft lbs
Impact Frequency 500 - 1,150 bpm
Oil Flow 12 - 26 gpm 45 - 100 lpm
Operating Pressure 2,465 psi 170 bar
Tool Diameter 3.0 in 76 mm
Tool Working Length 16.5 in 420 mm
