Working Weight

487 lbs

221 kg

Recommended Carrier Weight

3 - 5.5 US tons

2.7 - 5 metric tons

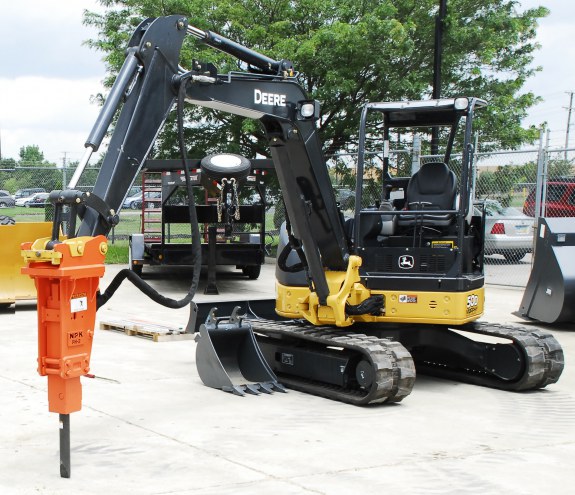

The PH2 hydraulic hammer is compatible with skid steers, backhoes and/or mini excavators in the 3-5.5 ton range.  Visit the Attachment Wizard to see which hydraulic breakers are compatible with your carrier!



Hydraulic Hammer Service Videos  Hydraulic Hammer Operation Videos  Hydraulic Hammer Photo Galleries  Hydraulic Hammer Publications

Visit and subscribe to NPK's YouTube channel for hydraulic hammer operation and service videos and videos of hydraulic breakers in action!

Visit NPK's photo website for searchable hydraulic hammer photo galleries!

Visit the Hydraulic Hammer Publications page for sales brochures, operators manuals, and service bulletins.  If you require a service manual or would like a hard copy of any other manual, please contact the Sales Department at 800-225-4379 or email to


Videos de servicio

Visita y suscríbete al canal de YouTube de NPK para videos de instrucciones de servicio para martillos hidráulicos.



Find a Dealer

Additional Images:

Impact Energy Class 500 ft lbs
Impact Frequency 500 - 1,200 bpm
Oil Flow 7 - 16 gpm 25 - 60 lpm
Operating Pressure 2,465 psi 170 bar
Tool Diameter 2.6 in 66 mm
Tool Working Length 15.1 in 384 mm
