Impact Energy Class

1,000 ft lbs

Working Weight

1,070 lbs

485 kg


Visit NPK's photo website for searchable photo galleries organized by model!

Click to download the Pneumatic Hammer Operators Manual!


If you require a hard copy of the operators manual, please contact the Sales department at 440-232-7900 or by email at




Find a Dealer

Additional Images:

Recommended Carrier Weight 10 - 16 US tons 9.1 - 14.5 metric tons
Impact Frequency 500 bpm
Air Pressure 85 psi
Air Consumption 7.2 cu m/min
Compressor 75PS class

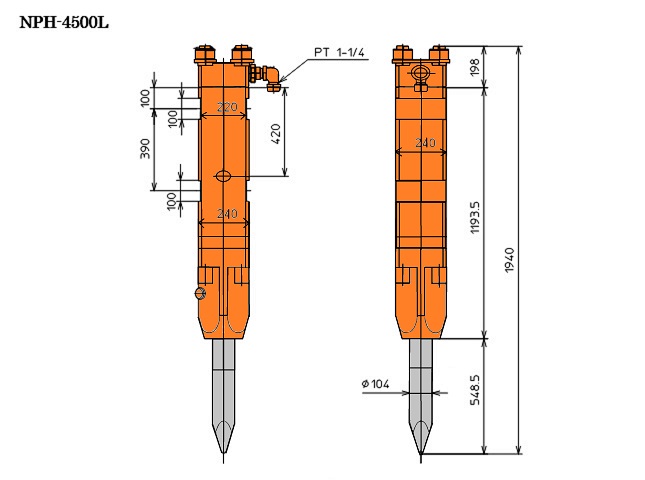

Length (without chisel) 54.8 in 1,390 mm
Bore 5.1 in 130 mm
Stroke 12.6 in 320 mm
Hose size 1.5 in
