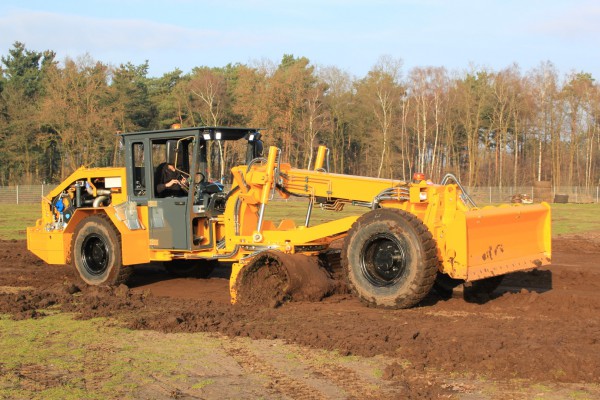

PG 10 HA | Underground Grader


PG 10 HA

Model

PG 10 HA

Operating Weight of Vehicle

25,100 lbs

11,400 kg

Traction Force

15,000 lbs

65 kN

Find a Dealer

Additional Images:


Center Blade Working Width 10' 3,050 mm
Maximum Depth of Cut 1' 310 mm
Center Blade Side Shift 1' 8" 500 mm
Front Blade Width 6' 11" 2,100 mm
Operator Cab Location center
Front Steering Angle +/- 38 degrees
Articulated Steering Angle +/- 45 degrees
Oscillating Angle +/- 10 degrees
Engine Performance Rating 160 hp 120 kW
Speed up to 5 mph in 1st gear / 12.5 mph in 2nd gear up to 8 km/h in 1st gear / 20 km/h in 2nd gear
Gradeability 45%
Drive hydrostatic
Tire Size 12.00 R20
Height 7' 3" 2,200 mm
Width (excluding blades) 6' 9" 2,050 mm
Length 25' 3" 7,700 mm
Wheelbase 15' 9" 4,800 mm
Turning Radius (inside) 6' 11" 2,100 mm
