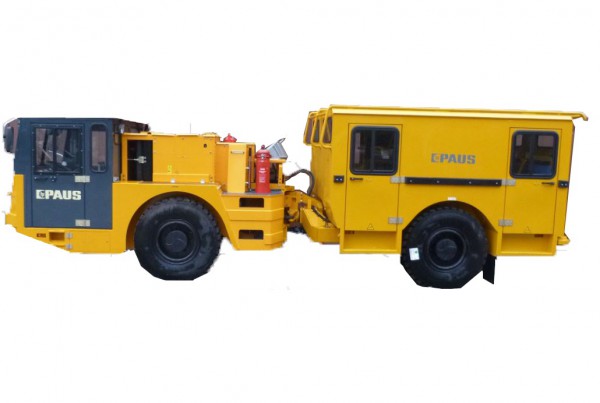

Universa 50 | Personnel Transporter | Mantrip


Universa 50

Model

Universa 50

Payload

22,000 - 33,000 lbs

10,000 - 15,000 kg

Seating Capacity

up to 22

Return to / Visit NPKmining.com

NPK Mining Equipment logo







Mine Utility Vehicle & Personnel Transporter Operation Videos  Mine Utility Vehicle & Personnel Carrier Photo Galleries  Utility Vehicle & Personnel Transporter Publications



Visit and subscribe to NPK's YouTube channel for videos of mine utility vehicles & personnel carriers in action!

Visit NPK's photo website for searchable mining utility vehicle and personnel carrier photo galleries!

Visit the Mining Utility Vehicle & Personnel Transporter Publications page for sales brochures.





Find a Dealer

Additional Images:


Operating Weight (base vehicle) 17,600 - 22,000 lbs 8,000 - 10,000 kg
Chassis stable chassis with articulated steering
Engine Performance Rating 130 - 173 hp 95 - 129 kW
Speed up to 15.5 mph up to 25 km/h
Gradeability 35%
Braking enclosed oil-immersed multiple-disc brakes, SAHR
Drive hydrodynamic power shift, all-wheel drive
Tire Size 12.00 R20 12.00 R24
Steering Four Wheel (optional) N/A
Steering Crab Steer (optional) N/A
Height 7' - 7' 4" 2,140 - 2,230 mm
Width 6' 3" - 6' 11" 1,900 - 2,100 mm
Length 24' 9" - 26' 1" 7,550 - 7,950 mm
Wheelbase 12' 8" - 13' 5" 3,850 - 4,100 mm
Ground Clearance 1' 2" - 1' 7" 350 - 480 mm
Turning Radius (inside) 13' 7" - 14' 5" 4,150 - 4,400 mm

Description
