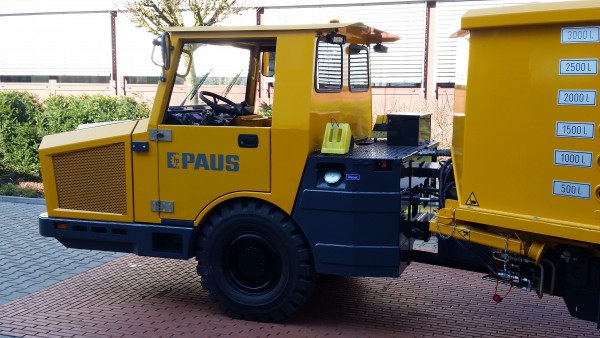

Universa 40 | Personnel Transporter | Mantrip


Universa 40

Model

Universa 40

Payload

15,400 lbs

7,000 kg

Seating Capacity

up to 12




Mine Utility & Personnel Transporter Operation Videos
  Mine Utility Vehicle & Personnel Carrier Photo Galleries  Utility Vehicle & Personnel Transporter Publications



Visit and subscribe to NPK's YouTube channel for videos of mine utility vehicles & personnel carriers in action!

Visit NPK's photo website for searchable mining utility vehicle and personnel carrier / mantip photo galleries!

Visit the Mining Utility Vehicle & Personnel Transporter Publications page for sales brochures.





Find a Dealer

Additional Images:


Operating Weight (base vehicle) 11,000 lbs 5,000 kg
Chassis stable, rigid chassis frame with articulated steering
Engine Performance Rating 100 hp (120 hp optional) 75 kW (93 kW optional)
Speed up to 12.5 mph up to 20 km/h
Gradeability 40%
Braking SAHR, oil immersed
Drive hydrostatic
Tire Size 35 x 15 - 15 14.50 R15 optional
Steering Four Wheel (optional) N/A
Steering Crab Steer (optional) N/A
Height 6' 11" 2,100 mm
Width 6' 9" 2,055 mm
Length 22' 2" 6,760 mm
Wheelbase 10' 2" 3,100 mm
Ground Clearance 1' 4" 400 mm
Turning Radius (inside) 10' 8" 3,250 mm

Description
