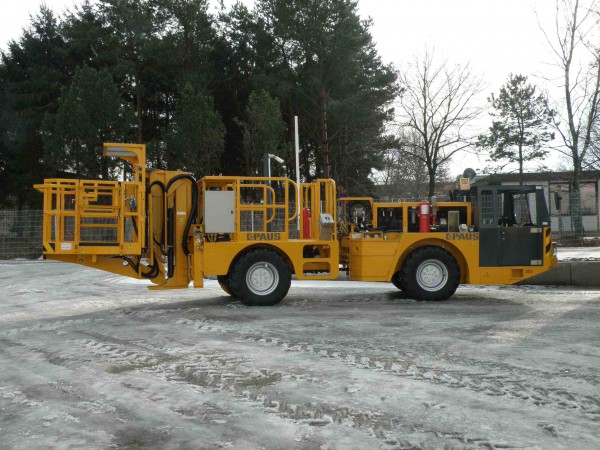

Universa 50-4 | Mine Utility Vehicle


Universa 50-4

Model

Universa 50-4

Payload

33,000 lbs

15,000 kg

Chassis

stable chassis with articulated steering

Find a Dealer


Operating Weight (base vehicle) 22,000 lbs 10,000 kg
Maximum Seating Capacity 2 (up to 22 with personnel cassette)
Engine Performance Rating 150 hp 130 kW
Speed up to 15.5 mph up to 25 km/h
Gradeability 40%
Braking SAHR, oil immersed
Drive hydrodynamic power shift
Tire Size 14.00 R24
Steering articulated
Height 7' 3" 2,220 mm
Width 6' 11" 2,100 mm
Length 25' 7" 7,800 mm
Wheelbase 13' 3" 4,050 mm
Ground Clearance 1' 3" 390mm
Turning Radius (inside) 13' 3" 4,050 mm
