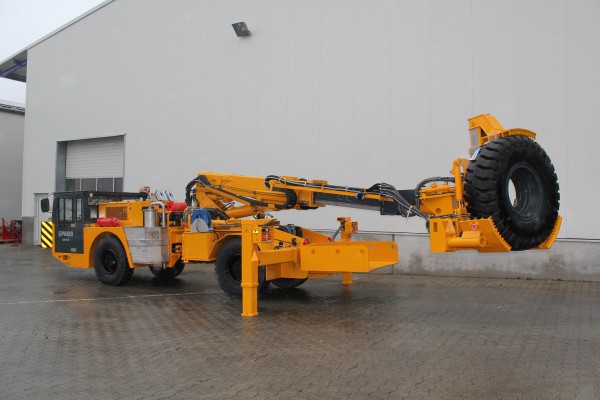

Universa 50-2 Tire Handler

Model

Universa 50-2 Tire Handler

Payload

6,600 lbs

3,000 kg

Chassis

articulated




Mine Utility & Personnel Transporter Operation Videos
  Mine Utility Vehicle & Personnel Carrier Photo Galleries  Utility Vehicle & Personnel Transporter Publications



Visit and subscribe to NPK's YouTube channel for videos of mine utility vehicles & personnel carriers in action!

Visit NPK's photo website for searchable mining utility vehicle and personnel carrier / mantrip photo galleries!

Visit the Mining Utility Vehicle & Personnel Transporter Publications page for sales brochures.





Find a Dealer

Additional Images:


Operating Weight (base vehicle) 36,400 lbs 16,500 kg
Maximum Seating Capacity 2
Engine Performance Rating 130 hp 95 kW
Speed up to 15.5 mph up to 25 km/h
Gradeability 40%
Braking SAHR, oil immersed
Drive hydrodynamic power shift
Tire Size 12.00 R20
Steering articulated
Height 8' 1" 2,475 mm
Width 6' 10" 2,070 mm
Length 32' 2" 9,810 mm
Wheelbase 11" 6" 3,500 mm
Ground Clearance 1' 2" 350 mm
Turning Radius (inside) 12' 4" 3,750 mm
