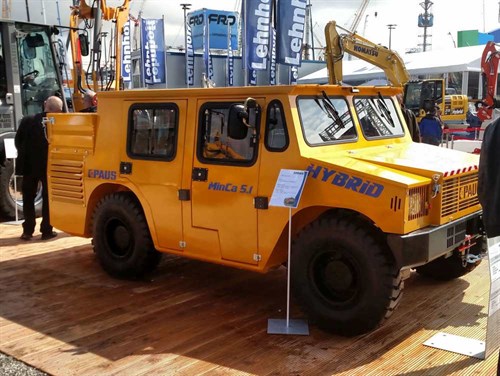

MinCa 5.1H | Hybrid Mine Utility Vehicle


MinCa 5.1H

Model

MinCa 5.1H

Payload

2,600 lbs

1,200 kg

Chassis

rigid frame

Find a Dealer

Additional Images:


Operating Weight (base vehicle) 6,600 lbs 3,000 kg
Maximum Seating Capacity 5
Engine Performance Rating diesel - 24 hp; electric - 67 hp; battery - 27 hp diesel - 18 kW; electric - 50 kW; battery - 20 kW
Speed up to 18.5 mph up to 30 km/h
Gradeability 40%
Braking SAHR, oil immersed
Drive electric
Tire Size 7.50 R15
Steering front wheel
Height 5' 9" 1,750 mm
Width 6' 7" 2,000 mm
Length 13' 3,950 mm
Wheelbase 7' 7" 2,310 mm
Ground Clearance 10" 245 mm
Turning Radius (inside) 12' 2" 3,700 mm

Description
