MinCa 5.1D | Mine Utility Vehicle


MinCa 5.1D

Model

MinCa 5.1D

Payload

2,600 lbs

1,200 kg

Chassis

rigid frame

Optional service equipment:

  • various maintenance tool box configurations
  • torches w/ hose reels
  • compressor w/ hose reels
  • welding equipment w/ cable reels
  • cable winch - front or back

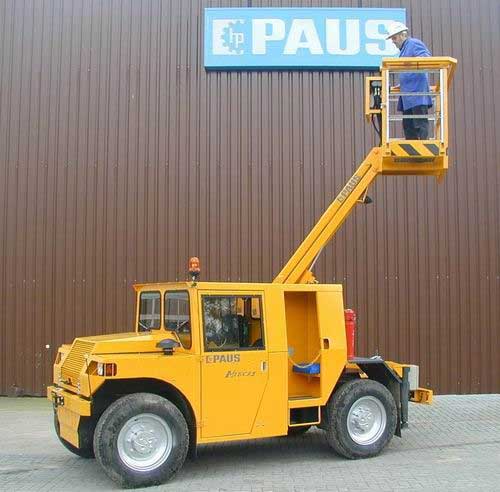

  • mobile work platform (2 sizes)
  • various crane options
  • belt maintenance tools




Mine Utility & Personnel Transporter Operation Videos
  Mine Utility Vehicle & Personnel Carrier Photo Galleries  Utility Vehicle & Personnel Transporter Publications



Visit and subscribe to NPK's YouTube channel for videos of mine utility vehicles & personnel carriers in action!

Visit NPK's photo website for searchable mining utility vehicle and personnel carrier / mantrip photo galleries!

Visit the Mining Utility Vehicle & Personnel Transporter Publications page for sales brochures.





Flat deck trailer for Paus MinCas

Service trailers are also available for extra pull behind storage space.  Both enclosed and flat-deck options are available and trailers can be equipped with any service equipment listed above, fold out work surfaces, cranes, on board electrical outlets, and additional work lights.

For more details, see our service trailer brochure.

Visit our photo site to see additional service trailer photos.



Find a Dealer

Additional Images:


Operating Weight (base vehicle) 9,300 lbs 4,200 kg
Maximum Seating Capacity 5
Engine Performance Rating 100 hp (74 hp optional) 75 kW (55 kW optional)
Speed up to 18.5 mph up to 30 km/h
Gradeability 40%
Braking SAHR, oil immersed
Drive hydrostatic
Tire Size 7.50 R15
Steering front wheel
Height 5' 9" 1,750 mm
Width 6' 9" 2,060 mm
Length 13' 5" 4,080 mm
Wheelbase 7' 7" 2,300 mm
Ground Clearance 9" 220 mm
Turning Radius (inside) 9' 11" 3,030 mm

Description
