853 TSL | Mine Utility Vehicle


853 TSL

Model

853 TSL

Payload

man basket: 660-1,100 lbs; bucket: 4,410-4,850 lbs; forks: 5,290-5,730 lbs

man basket: 300-500 kg; bucket: 2,000-2,200 kg; forks: 2,400-2,600 kg

Chassis

articulated

Return to / Visit NPKmining.com

NPK Mining Equipment logo



Available attachments:

  • hydraulic hammer
  • forks

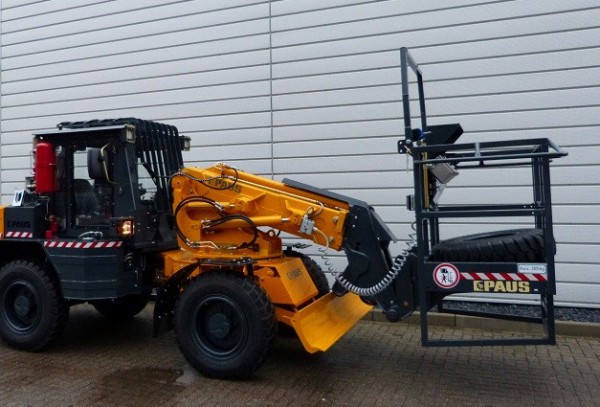

  • manbasket
  • rotary head cutter
  • front blade
  • ANFO
  • various buckets for any application





Mine Utility Vehicle & Personnel Transporter Operation Videos  Mine Utility Vehicle & Personnel Carrier Photo Galleries  Utility Vehicle & Personnel Transporter Publications



Visit and subscribe to NPK's YouTube channel for videos of mine utility vehicles & personnel carriers in action!

Visit NPK's photo website for searchable mining utility vehicle and personnel carrier photo galleries!

Visit the Mining Utility Vehicle & Personnel Transporter Publications page for sales brochures.





Find a Dealer


Operating Weight (base vehicle) 19,840 lbs 9,000 kg
Maximum Seating Capacity 1
Engine Performance Rating 107 hp 80 kW
Speed up to 11.2 mph up to 18 km/h
Gradeability 35%
Braking enclosed oil-immersed multiple-disc brakes, SAHR
Drive hydrostatic all-wheel drive
Tire Size 9.00 R20
Steering articulated
Height 7' 10" 2,380 mm
Width 6' 3" 1,900 mm
Length 18' 3" 5,562 mm
Wheelbase 8' 2,430 mm
Ground Clearance 11" 270 mm
Turning Radius (inside) 7' 9" 2,350 mm
