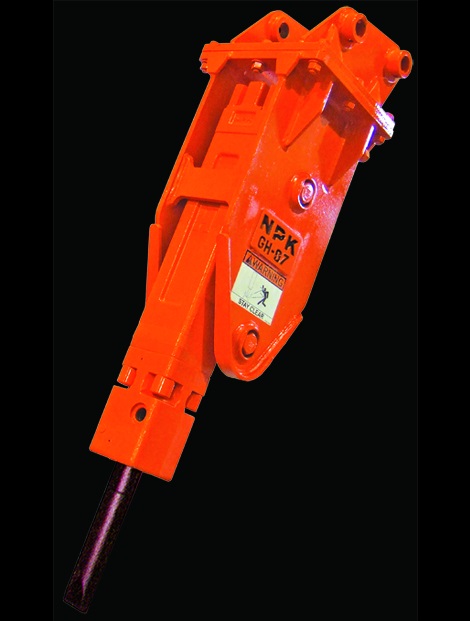

GH07
Model
GH07
Working Weight
270 lbs
125 kg
Recommended Carrier Weight
1.5 - 2.75 US tons
1.4 - 2.5 metric tons
Visit and subscribe to NPK's YouTube channel for hydraulic hammer operation and service videos and videos of hydraulic breakers in action!
Visit NPK's photo website for searchable hydraulic hammer photo galleries!
Visit the Hydraulic Hammer Publications page for sales brochures, operators manuals, and service bulletins. If you require a service manual or would like a hard copy of any other manual, please contact the Sales Department at 440-232-7900 or email to sales@npkce.com.
Visita y suscríbete al canal de YouTube de NPK para videos de instrucciones de servicio para martillos hidráulicos.
NPK offers a wide variety of accessories for hydraulic hammers:
- Tools
- Autolube Systems
- Dust Suppression Kits
- Grease
- Quick Disconnects
For more about all types of hammer accessories, visit the Hammer Accessories Page.
Visit the Hammer Accessory Publications page for related sales brochures, operators manuals and sales bulletins.

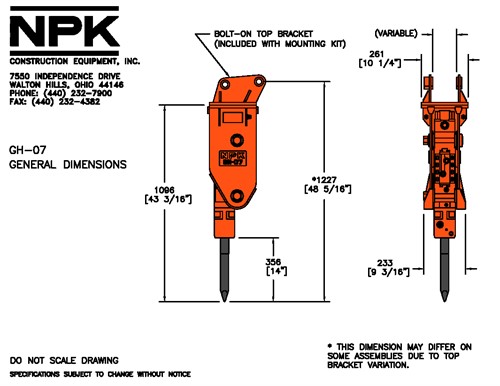

Additional Images:
| Impact Energy Class | 200 ft lbs | |
| Impact Frequency | 500 - 1,200 bpm | |
| Oil Flow | 4 - 9 gpm | 15 - 35 lpm |
| Operating Pressure | 1,500 psi | 105 bar |
| Tool Diameter | 1.9 in | 47 mm |
| Tool Working Length | 13.1 in | 333 mm |
